Palisade Fence
The Palisade is available with the ‘W’ section profile or ‘D’ section profile. Palisade fencing is becoming more popular because of its strength and security, the picket design comes with a pointy option, rounded option or the triple point option. Palisade is used extensively for government projects and private businesses as the ideal visual barrier against the intruders. We can also provide option for crank design or even a concertina razor wire as an add on item. All fencing are manufactured according to the Australian and British Standard.
- Commercial area
- Residential area
- Industrial area
- Government sector
- Agriculture area
Palisade Fence
Palisade Fence
3D Model Viewer
Select a variant to view the 3D model
Product Specifications
Pales spec range:
1) Profile: W shape, D shape, Rounded shape, Notched section
2) Width: 68 – 80mm
3) Height: 1750mm – 3000mm
4) Thickness: 2.0mm – 4.0mm
Rail spec range:
1) Profile: EA bar 40*40mm, 50*50mm, 60*60mm
2) Width: 2500mm – 3000mm
3) Thickness: 3.0mm – 6.0mm
Post spec range:
1) Profile: IPE or RSJ
2) Size: 100*55mm, 100*68mm, 120*75mm, 150*75mm, 150*100mm
3) Length: 2700mm – 4000mm
4) Top end shank or flat
Final touch:

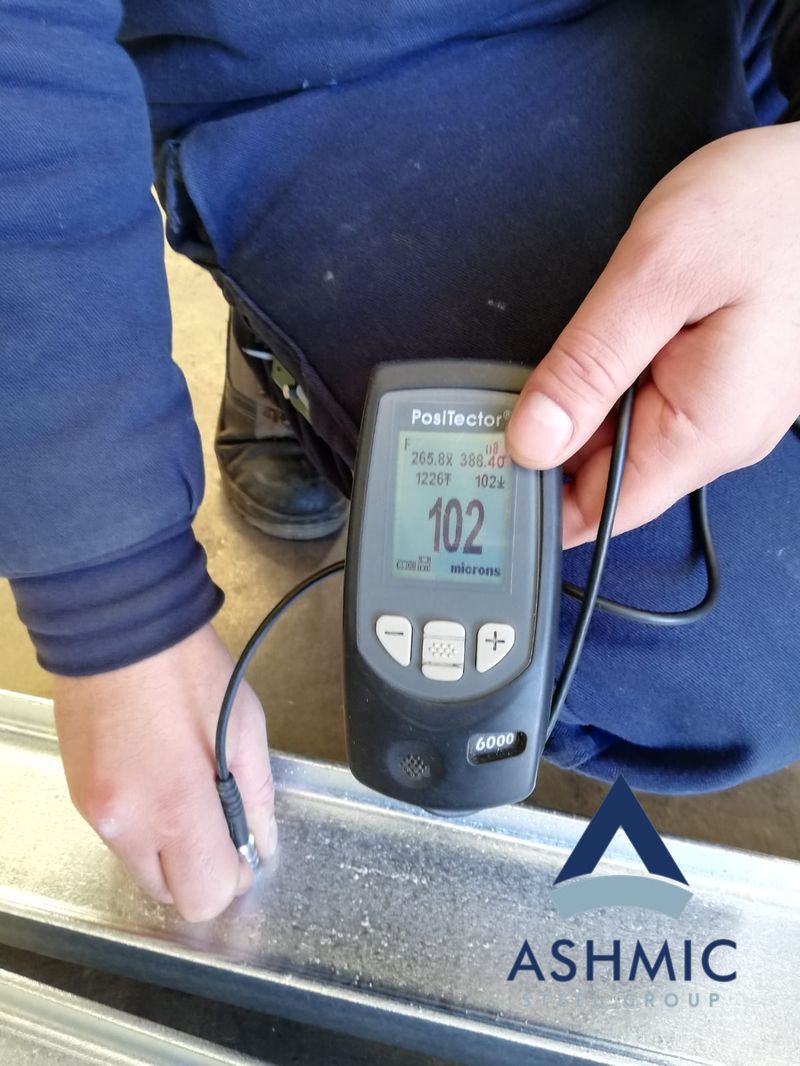

1) Finish surface: HDG zinc coating at 500g/m2 or Powder coated at preferred international color RAL code.
