Anti Climb Fence - Security and Perimeter Fencing by Ashmic Steel Group
Anti Climb Fence view 1
Anti Climb Fence view 2
Anti Climb Fence view 3
Security and Perimeter Fencing

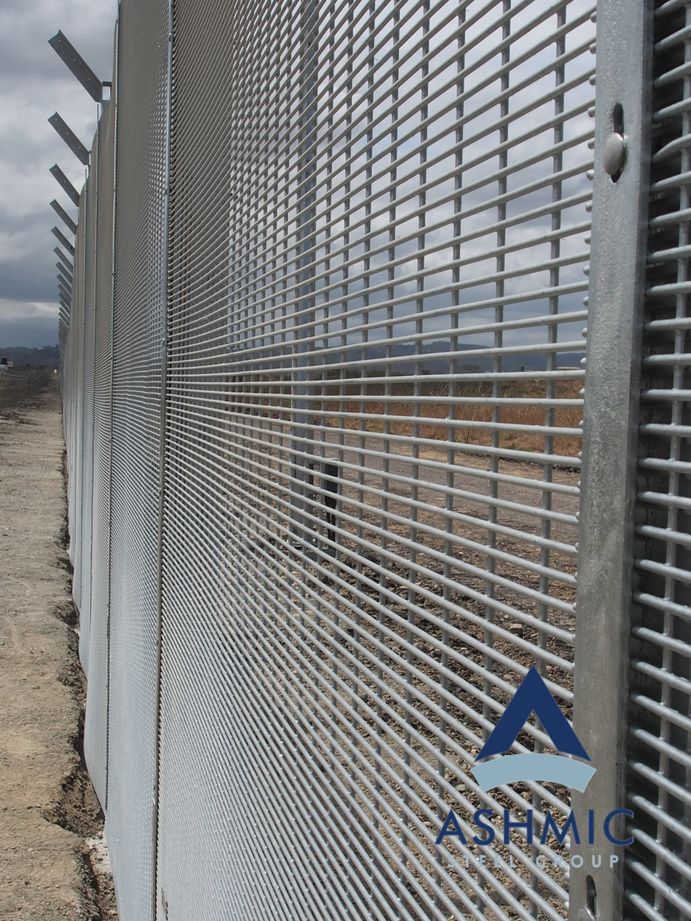

Anti Climb Fence

Our many years of knowledge and experience within the security fencing industry has helped with the advance design and development of the high security anti-climb mesh fencing system, otherwise known as 358 system. The anti-climb fence provides maximum security for perimeter security fence protection. There are a few options of mesh aperture ranging from the below table where we manufactured from 3 - 5mm wire diameter wire makes it extremely difficult to penetrate using any hand tools, therefore providing more time to execute the point of entry. The anti-climb system speaks for itself where finger or toe-proof mesh aperture makes it totally secure. It also provides a clear level of sight through the horizontal aperture from any angle giving the confidence to spot any enemies.

We can also accommodate the protrude design for the anti-climb fence system where it provides additional strength to the overall mesh. These whole systems utilising the angle bar for reinforcement, clamp bars and heavy-duty adjustable posts with tamper proof security fixings and clips. The anti-climb system is available for add on like the razor or barb wires for double protection. We can also manufacture the preferable gate system to suit the original fence design. Eg: Single swing pedestrian gate, Double swing for vehicle entry or even a sliding gate system with automated motor design.

  • High-Security Design
  • Durable and Corrosion-Resistant
  • Clean and Professional Appearance

Product Specifications

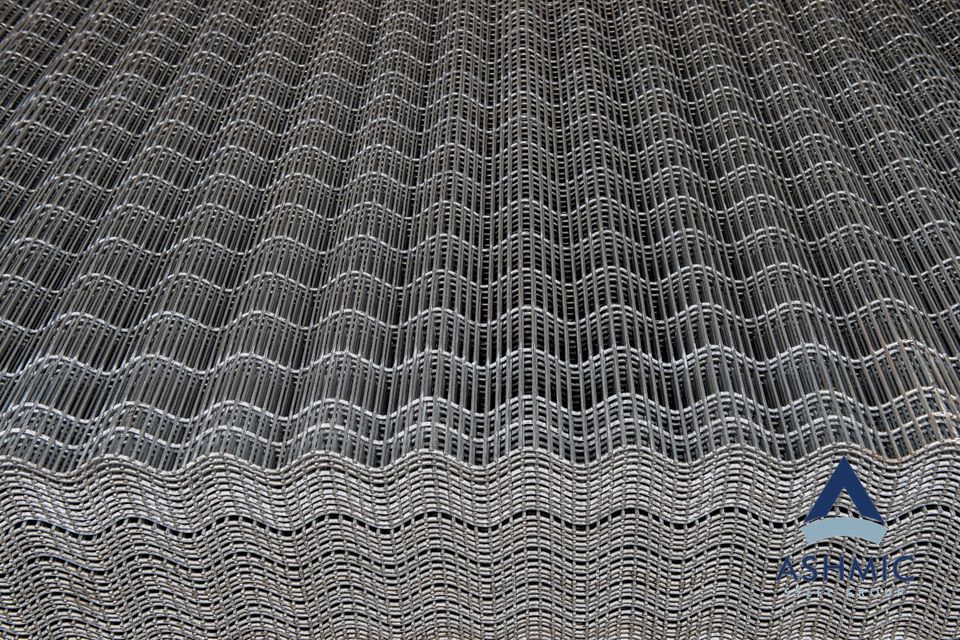

Mesh spec range:

Height: 2400mm5000mm

Width: 1000mm2500mm

Vertical mesh aperture (center to center diameter): 72mm80mm

Horizontal mesh aperture (center to center diameter): 12mm13mm

Wire diameter: 3.0mm to 5.0mm

  1.

Post spec range:

SHS profile: 60mm150mm

CHS profile: 60mm150mm

Thickness: 3.0mm10.0mm

Universal column profile: 100UC – 200UC

Height: 3000mm6000mm

Option for embedded design or base plated design

  1.

Equal angle support bar spec range:

Profile: 40*40mm – 80*80mm

Length: 1000mm2500mm

Thickness: 3.0mm6.0mm

  1.

Clamp bar spec range:

Profile: 30mm60mm

Length: 2400mm5000mm

Thickness: 3.0mm – 6.0mm





Add on:

Concertina razor wire profile: BTO-10 – CBT-65

Barb Wires: 1.5mm2.0mm

Top Y support Equal Angle bar

Top V support Equal Angle bar

  1.

Final touch:

Finish surface: HDG (Hot dip galv) at 500g/m2 or powder coated at preferred international color RAL code.





Want to know more?

Our team can design and fabricate custom steel products to meet your specific requirements.
