Security and Perimeter Fencing

Garrison Fencing

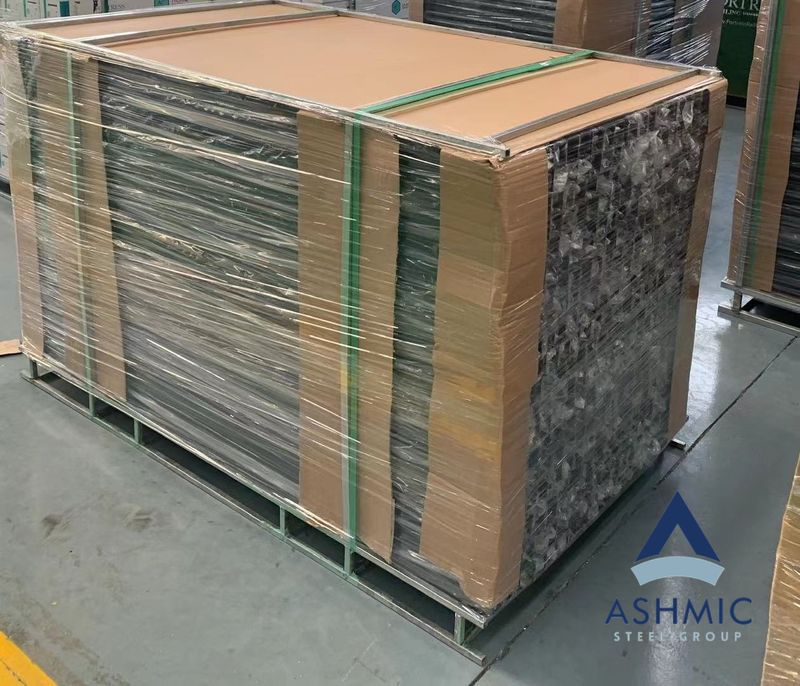

Garrison fencing uses pre galv hot steel strip as a base material, after welding with high-frequency welding technology also called as roll forming process, the strip are form into tube to suit each profile. There are 3 options connecting design for the garrison fence. There is the face welded which is normally the heavier spec of the 3. Follow with the punched through rail system and the clip-on system where there is NO welding required. We can also accommodate with a minimal of 2 horizontal rails to 4 horizontal rails to suit the environment. We can also customise the top end design for flat top, crimped spear and with the preferred ornamental design to suit home surrounding. There is also an option for crank top for better security protection. With our unique and secure packaging design we can easily transport the cargo to any part of the world at ease.

  • Commercial area
  • Residential and around High rise building area
  • Industrial area
  • Government sector
  • School Area

Product Specifications



Garrison panel spec range:

1) Height: 1800mm – 2400mm

2) Width: 2400mm – 3000mm

3) SHS Rail profile: 40mm - 50mm

4) SHS Picket profile: 20mm – 30mm

5) Thickness: 1.0mm – 2.5mm



Post spec range:

1) SHS profile: 60mm – 100mm

2) Length: 2700 - 3300mm

3) Thickness: 2.0mm – 3.0mm



Final touch:

Finish surface: HDG zinc coating at 500g/m2 or Powder coated at preferred international color RAL code
