Professional Scaffolding & Security Systems
Complete range of security fencing and construction safety solutions custom-made for residential, commercial, and industrial sectors with maximum security and aesthetic value.
ASHMIC Steel Group Story
From humble beginnings to global excellence in scaffolding and security solutions
Image will be available soon
Our Founder's Journey
Our founder, Cliff Lai Shien Kwang, started humbly as a welder for the oil and gas sector. Over the years, he enhanced his skills to become a certified welding inspector (CSWIP 3.1).
Working overseas with many expat groups, Cliff built strong relationships and saw opportunities when based in China for an LNG project with Chevron. His vision and understanding led to close discussions with some of the biggest steel manufacturers in Shandong and Hebei Province.
Starting with supply and installation work for domestic markets, ASHMIC STEEL GROUP was established to support the overseas market. The skilled team and connections have pushed ASHMIC to be a top player in the market.
Active Clients
Annual Turnover (USD)
Market Reach
Project Case Studies
Successful projects delivered worldwide across various industries
Image will be available soon
Shell Nigeria
Country: Nigeria
Product: Heavy Duty Anti Climb Fence 3.3m panel with Bi-Post
Treatment: Hot Dip Galvanizing 550g/mΒ²
Meter Run: 5130LM
Image will be available soon
QR Railway Yard Upgrade
Country: Australia
Product: Heavy Duty Expanded Mesh Set
Treatment: Hot Dip Galvanizing 550g/mΒ²
Meter Run: 732LM
Image will be available soon
Ringlock Scaffolding Project
Country: Dubai
Product: Ringlock System
Treatment: Hot Dip Galvanizing 550g/mΒ²
Sets: 2000 sets
Image will be available soon
Standard Scaffolding Project
Country: Malaysia
Product: Scaffolding System
Treatment: Hot Dip Galvanizing 550g/mΒ²
Sets: 1520 sets
Image will be available soon
Palm Jumeirah Construction
Country: Dubai
Product: 1000 sets of Safety Net Frame
Treatment: Hot Dip Galvanizing 550g/mΒ²
Expansion: 1000 units at 6.0m horizontal rail
Image will be available soon
Petronas Learning Center
Country: Malaysia
Product: Nylofor 3D Fence
Treatment: Powder coated RAL6005 finish
Meter Run: 1320LM

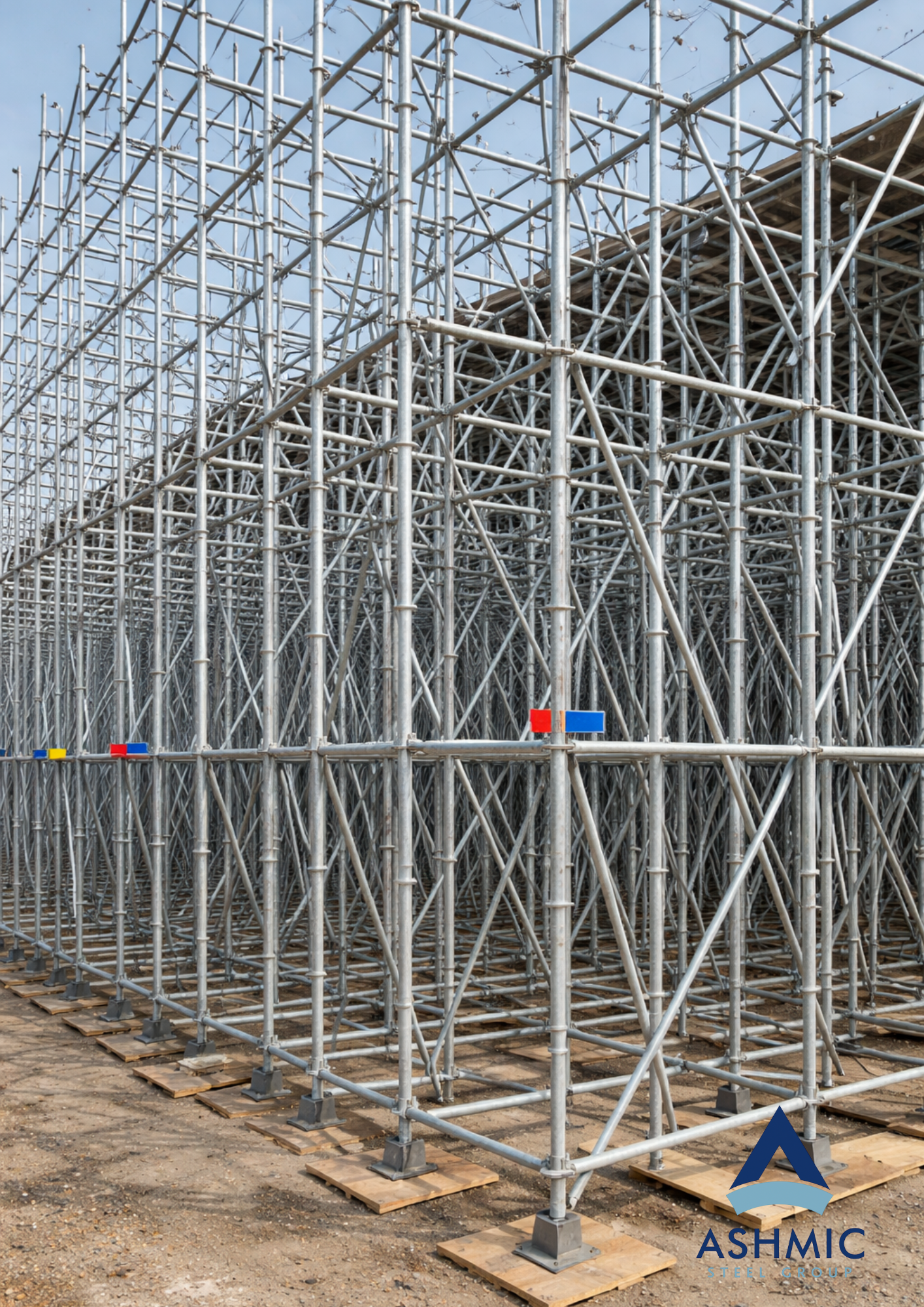

Ringlock Scaffolding System
Advanced scaffolding solution meeting British standards with superior flexibility and safety
Product Superiority
Image will be available soon

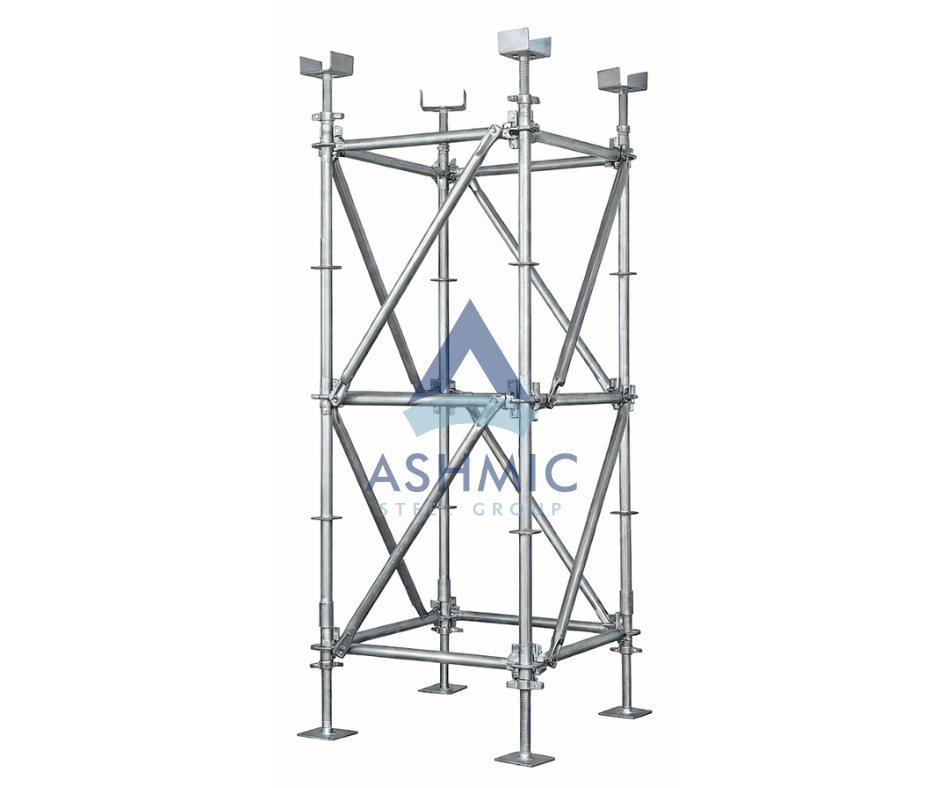

Key Components & Features
Adjustable Design
Easy adjustment of support level for various construction requirements
Connecting Rods
Connect upper and lower rods, keeping the rods evenly stressed
Disc Design
Four-sided tangential design increases contact area and enhances load capacity
Galvanized Pipe
Ο48mm galvanized pipe ensures bearing strength and durability
High-Strength Tie Rod
Fast assembly and disassembly with stable link connection
Safety Features
Anti-skid surface and self-locking safety hooks ensure construction safety
Technical Specifications

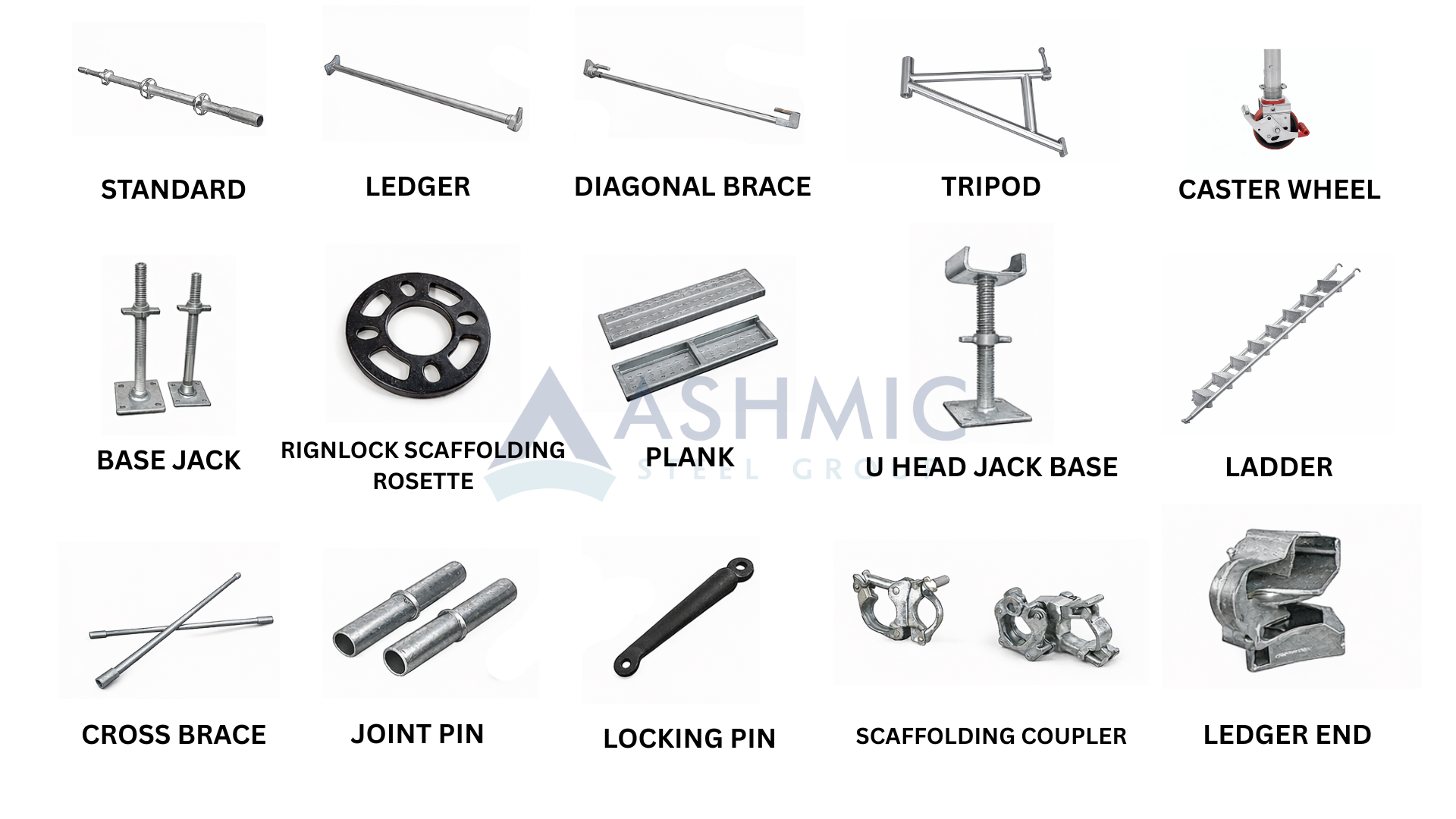

Separate Components Specifications
| Component | Model | Texture | Weight (KG) |
|---|---|---|---|
| Standard (48x3.25mm) | 1000mm | Q235B / Q355B | 5.8 |
| Ledger (48x2.75mm) | 1500mm | Q235B / Q355B | 8.2 |
| Diagonal Brace (42x2.75mm) | 2000mm | Q235 | 10.5 |

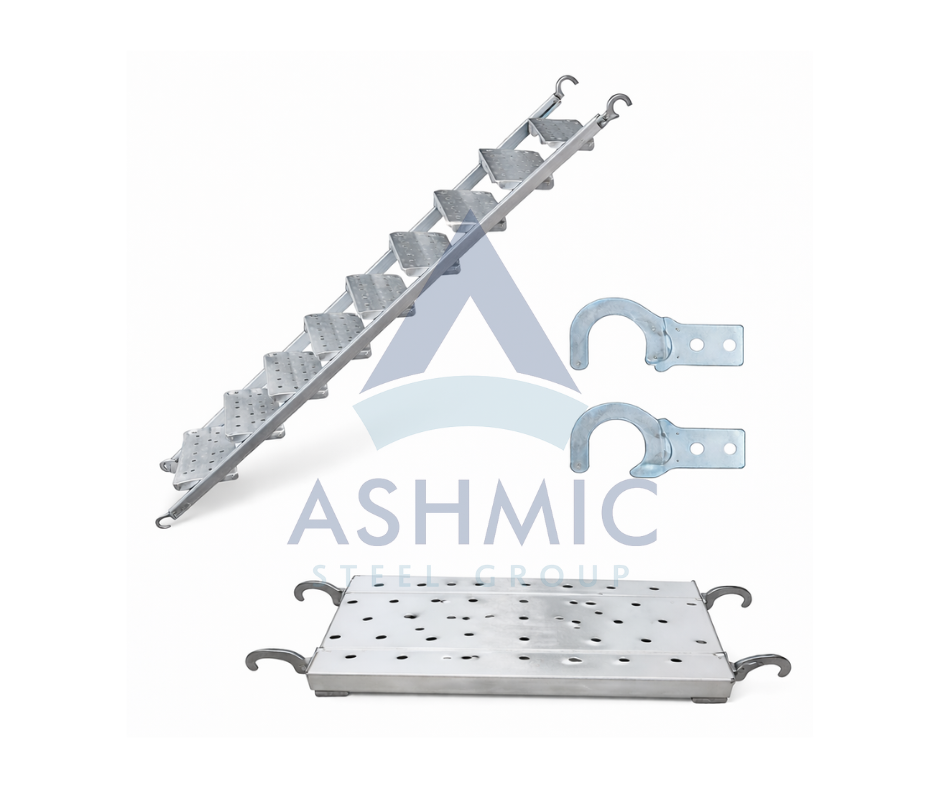

Hook Step Ladder Specifications
The ladder surface drainage and anti-skid ensure the safety of platform operation. Unique hook design and self-locking safety hook to avoid the risk of slipping off the springboard.
Hook step ladder diagram will be available soon
Installation Process
Step-by-step installation guide for optimal scaffolding setup
Foundation Setup
Adjustable base β Standard base β First level cross bar
Structure Building
Start stud β Second cross β First inclined bar β Docking stud
Final Assembly
Third level cross bar β Third inclined bar β U type adjusting seat
Standards Compliance
Scaffolding Steel and Tubes
- β’ BS1139 Standard
- β’ BS EN12811 Standard
- β’ BS EN39 Standard
Couplers, Fittings and Accessories
- β’ BS1139 Standard
- β’ EN74 Standard
- β’ Quality assured components
Ready to Enhance Your Construction Projects?
Contact our experts to discuss your scaffolding and security fencing requirements. We provide customized solutions for projects worldwide.
